NEMA Stepper Motor Standard Interface

The NEMA (National Electrical Manufacturers Association) standard defines the physical dimensions of motor faceplates and mounting patterns. The numeric designation (e.g., 17, 23) represents the faceplate size in tenths of an inch (1.7", 2.3", etc.).

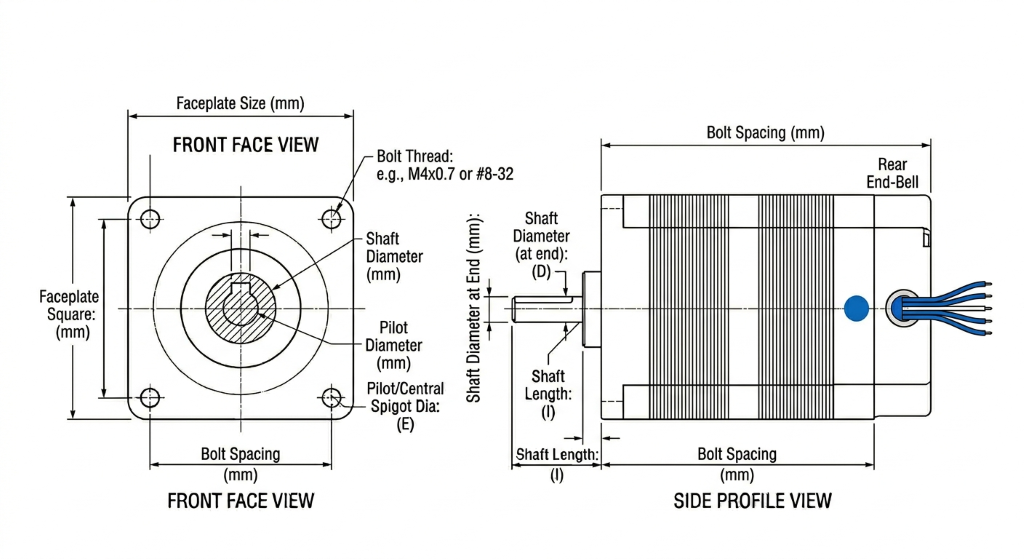

Click diagram to enlarge

NEMA Size Comparison

Design Parameters

• Faceplate Size: The total outer width and height of the motor mounting flange.
• Bolt Spacing: The center-to-center distance between mounting holes (square pattern).
• Pilot Diameter: The raised circular boss on the front face, used for precise axial alignment.
• Shaft Diameter: The nominal diameter of the output shaft, critical for coupling selection.

Technical Guidance for NEMA Stepper Integration

NEMA 17 motors are the "Goldilocks" of the stepper world, offering a perfect balance of torque, size, and cost. While the NEMA standard (National Electrical Manufacturers Association) strictly defines the mounting interface, it does not standardize the internal electrical characteristics or the overall motor length. For designers, this means the "NEMA 17" label is only the starting point for selection.

Understanding the NEMA Naming Convention

The NEMA number refers specifically to the faceplate size in tenths of an inch.

• NEMA 17 = 1.7" x 1.7" (approx. 42.3mm).
• NEMA 23 = 2.3" x 2.3" (approx. 56.4mm).

Because the mounting pattern is fixed, you can often swap a standard NEMA 17 for a high-torque version without modifying your CAD model's mounting holes, provided you have the axial clearance for a longer motor body.

The Relationship Between Stack Length and Torque

Unlike the faceplate, the body length (stack length) varies significantly. Common NEMA 17 lengths include 34mm, 40mm, and 48mm.

1. Short Stack (Pancake): Used in lightweight extruders or space-constrained robotics. These offer lower holding torque but reduce the "swing weight" of moving gantry systems.
2. Long Stack: Increases the volume of the internal copper windings and magnets, directly increasing the Holding Torque.

However, a longer stack also increases Rotational Inertia. If your application requires high-speed direction changes (high acceleration), a massive motor might actually perform worse than a mid-sized one because it has more internal mass to overcome.

Electrical Characteristics: Current and Inductance

When selecting a NEMA 17, pay close attention to the Phase Current and Phase Inductance.

• High Inductance: Generally produces higher torque at low speeds but the torque "drops off" rapidly as RPM increases. This is due to Back-EMF (Electromotive Force) fighting the driver's voltage.
• Low Inductance: Preferred for high-speed applications. These motors require higher current drivers (like the TMC2209 or TB6600) to reach their full potential.

Most modern NEMA 17s are 4-wire Bipolar motors. Ensure your driver is rated for the motor's peak current. Running a motor at its maximum rated current will cause it to reach temperatures of 80°C to 100°C—this is normal for Class B insulation, but it may soften 3D-printed plastic mounts (PLA/PETG).

Mechanical Mounting and Alignment

The most common failure in stepper systems is not the motor itself, but the connection to the load.

1. The Pilot Boss: Always design your mounting plate with a hole that matches the Pilot Diameter (22mm for NEMA 17). This boss is precision-machined to be concentric with the shaft. Relying solely on the four M3 bolts for alignment will lead to eccentric rotation, causing vibration and premature bearing wear.
2. Shaft Types: NEMA 17s typically come with a "D-cut" shaft or a round shaft. For high-torque applications, the D-cut is essential to prevent the set screw of a pulley or coupler from slipping.
3. Damping: Stepper motors are prone to mechanical resonance at certain frequencies, which causes "singing" or missed steps. Using rubber vibration dampers between the motor and the frame can significantly reduce noise and improve surface finish in CNC/3D printing applications.

Heat Dissipation Best Practices

Stepper motors are designed to be "heat sunk" into the machine frame.

• Metal Mounts: If the motor is bolted to a heavy aluminum or steel plate, the frame acts as a giant radiator.
• Plastic Mounts: If you are using plastic mounts, the motor cannot shed heat effectively. In these cases, it is highly recommended to add a 40mm heatsink and a small cooling fan to the rear of the motor, or reduce the driver current to 70% of the motor's rated maximum.

Wiring and Connectors

Standard NEMA 17s typically use a 6-pin JST-PH or XH connector on the motor body, though only 4 pins are used for the two coils. Be cautious with "plug-and-play" cables; different manufacturers may swap the internal coil pairs (A+ A- and B+ B-). Always check continuity with a multimeter before powering on to avoid damaging your stepper driver.

Common Application Reference

Note: Holding torque is measured with the motor powered but stationary. Dynamic torque (at speed) is always lower.
